PoC + Analog Dual Mode Radio

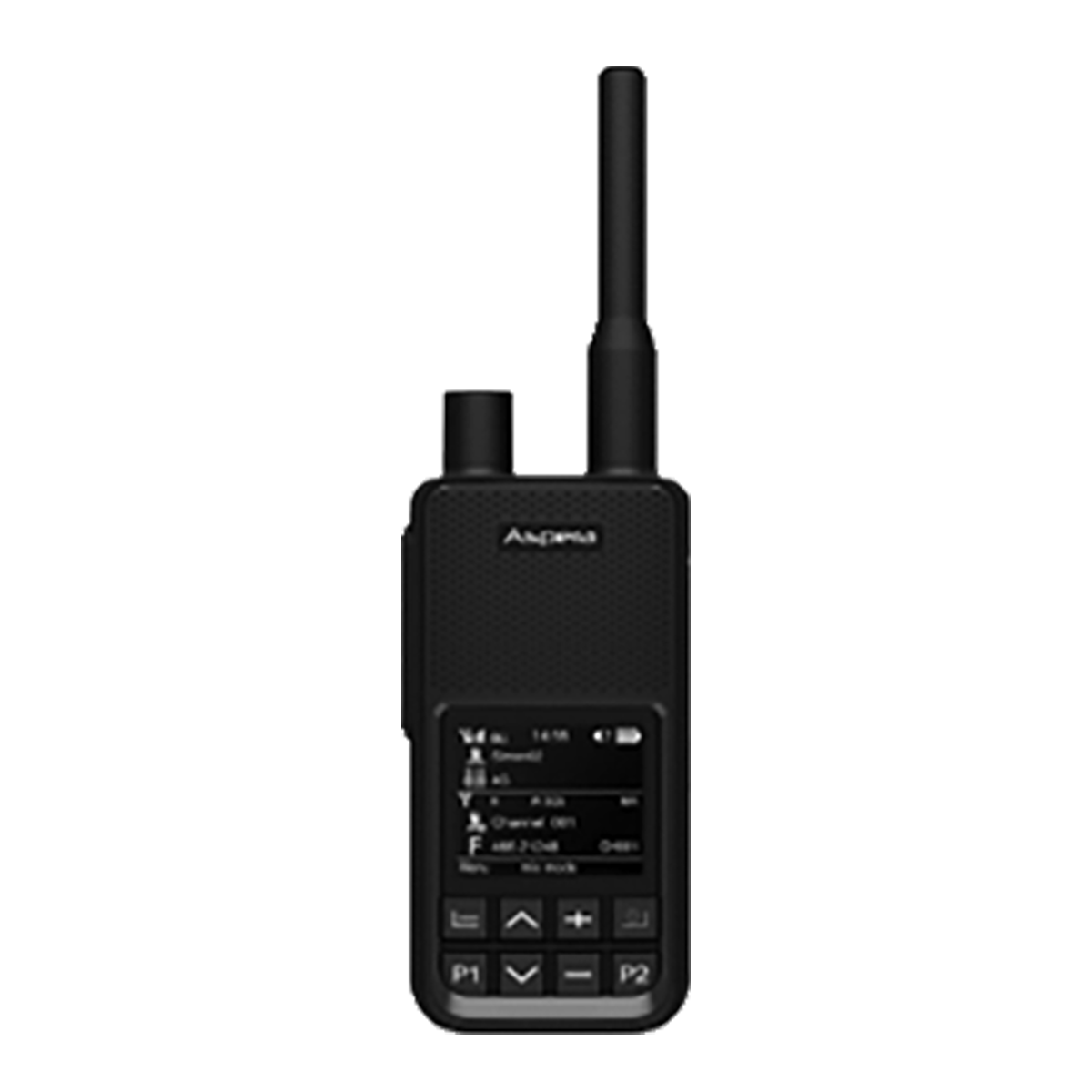

Aspera IP-360S PoC + Analog Dual Mode Radio
Dual mode PoC and analog radio with LTE bands, 200 analog channels, 0.5W analog output and 3000mAh battery.
Analog Parameter
| Frequency range | 446-446.200MHz |
|---|---|
| Channel | 200 |
| Receiving sensitivity | 0.2uV @ 12dB SINAD |
| Output power | 0.5W |
PoC Parameter
| Network band | LTE FDD B1/B3/B5/B8 and LTE TDD B38/B39/B40/B41 |
|---|---|
| PoC data characteristics | LTE FDD max 10Mbps DL / 5Mbps UL; LTE TDD max 7.5Mbps DL / 1Mbps UL |
| Output power | Class 3 for LTE FDD/TDD bands; Class E2 for EGSM900/DCS1800 8-PSK; Class 4 EGSM900; Class 1 DCS1800 |
| Sensitivity | FDD B1 -98.5dBm, B3 -97.5dBm, B5 -99dBm, B8 -98.5dBm; TDD B38 -97.5dBm, B39 -97dBm, B40 -97dBm, B41 -97dBm |
| Group No. | 50 |
Others
| Audio output power | 1.5W |
|---|---|
| Working temperature | -20C to +60C |
| Voltage/Battery capacity | 4.2V, 3000mAh |
