License Free PMR Radio

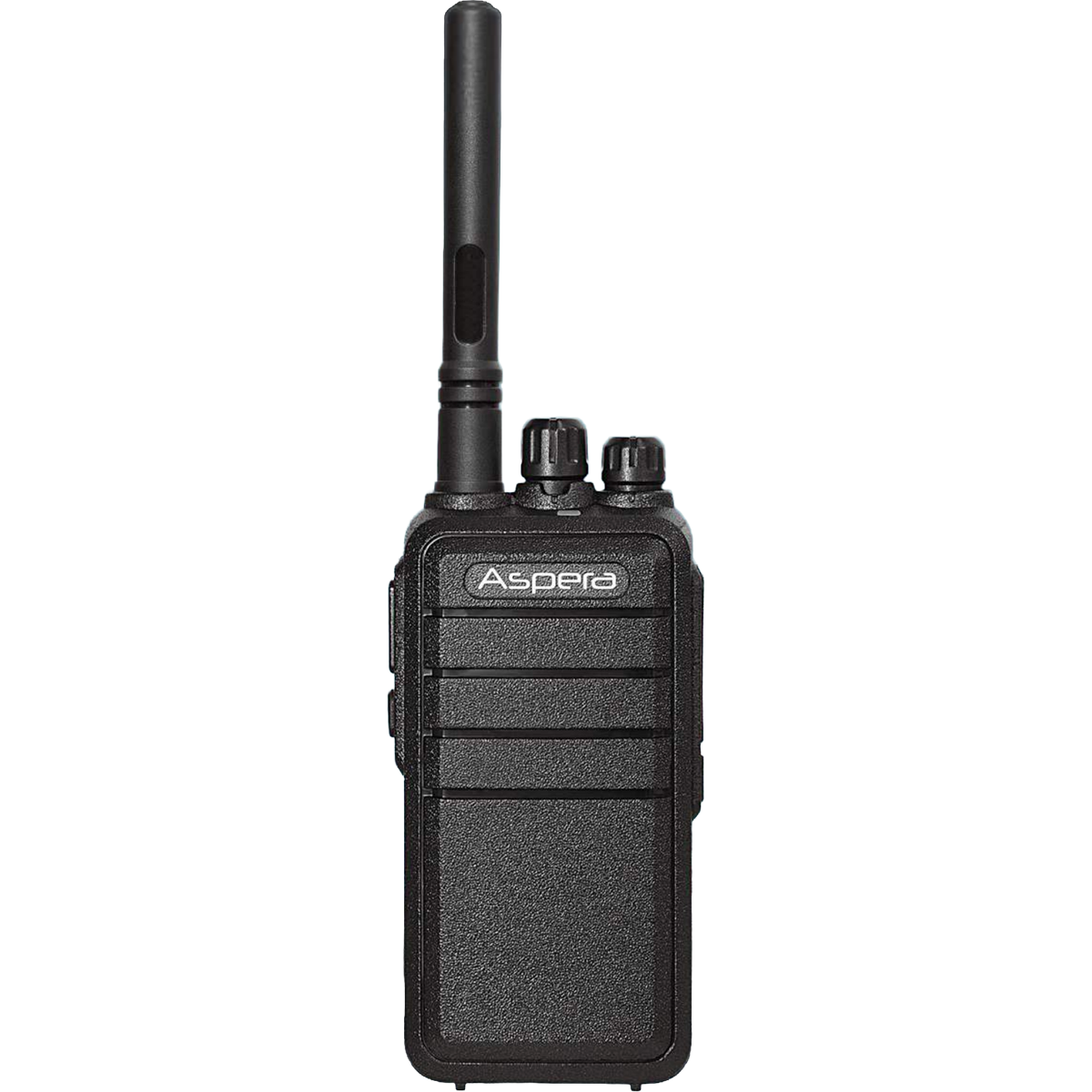

Aspera V7 PMR446 FM Transceiver
Compact UHF PMR446 two way radio with 16 channels, voice prompts, scanning and PC programming.
General
| Frequency range | UHF PMR446MHz |
|---|---|
| Operating temperature | -20C to +50C |
| Operating voltage | DC 7.2V |
| Operate mode | Simplex or Semi-duplex |
| Antenna impedance | 50 ohm |
| Weight | 190g including battery and antenna |
| Dimensions (W x H x D) | 116 x 57 x 34mm |
Transmitter
| RF output power | UHF 0.5W |
|---|---|
| Frequency stability | +/- 2.5ppm |
| Modulation limiting | <= 2.5KHz |
| Audio distortion | <= 5% |
| Modulation character | +3dB to -3dB |
| Adjacent channel power | >= 65dB |
| Spurious radiation | <= 7.5uW |
| Occupied bandwidth | <= 16KHz |
Receiver
| Receiving sensitivity | < 0.2uV |
|---|---|
| Audio distortion | <= 5% |
| Audio response | +2dB to -10dB |
| Co-channel suppression | >= -8dB |
| Adjacent channel selectivity | >= 55dB |
| Intermodulation rejection | >= 55dB |
| Spurious response | >= 65dB |
| Blocking | >= 85dB |
