License Free PMR Radio

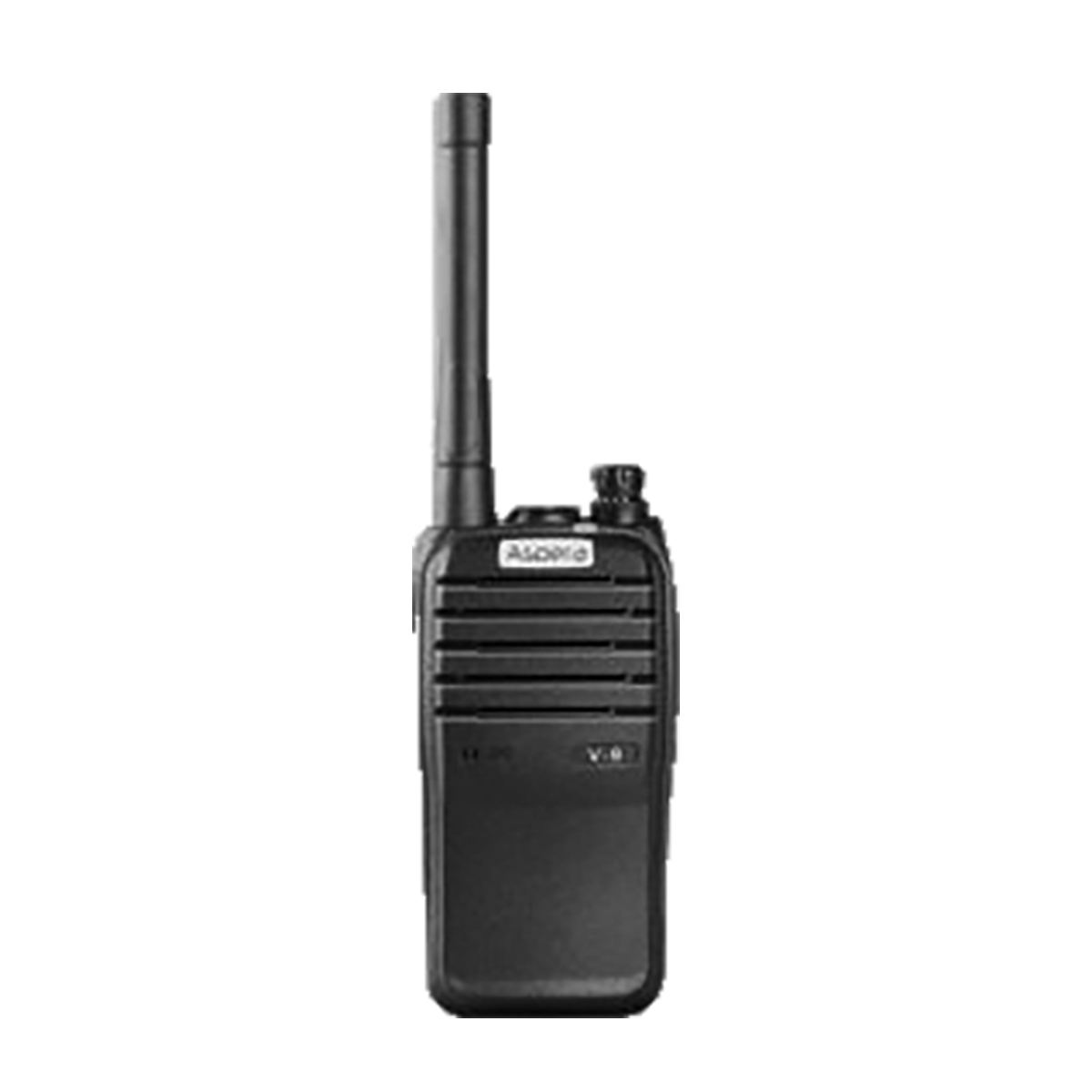

Aspera V9 License Free Walkie Talkie
License-free PMR446 radio approved under WPC order, with 16 channels, 0.5W output and standard field accessories.
General
| Frequency range | 446.0-446.2MHz |
|---|---|
| Channel capacity | 16 |
| Channel spacing | 25KHz/12.5KHz |
| Operating temperature | -20C to +60C |
| Antenna impedance | 50 ohm |
| Working voltage | 7.4VDC (+/- 20%) |
| Battery capacity | 2200mAh (Li-Poly) |
| Frequency stability | <= +/- 2.5ppm |
| Dimensions | 126 x 61 x 40mm |
| Weight | 238g battery included |
Transmitter
| Power output | 0.5W |
|---|---|
| Modulation | 16K0F3E (Wide) / 8K0F3E (Narrow) |
| Noise and harmonic | <= -36dB |
| FM noise | <= -40dB |
| Audio distortion | <= 5% |
| Adjacent channel power | >= 55dB (Wide) / 55dB (Narrow) |
| Modulation limitation | <= 5KHz (Wide) / 2.5KHz (Narrow) |
Receiver
| Sensitivity | < 0.2uV (Wide) / 0.25uV (Narrow) |
|---|---|
| Adjacent channel selectivity | >= 60dB (Wide) / 50dB (Narrow) |
| Intermodulation | >= 60dB (Wide) / 50dB (Narrow) |
| Spurious suppression | >= 60dB (Wide) / 50dB (Narrow) |
| SNR | >= 45dB (Wide) / 40dB (Narrow) |
| Audio output power | 0.5W |
| Audio distortion | 0.05 |
