Digital Portable Radio

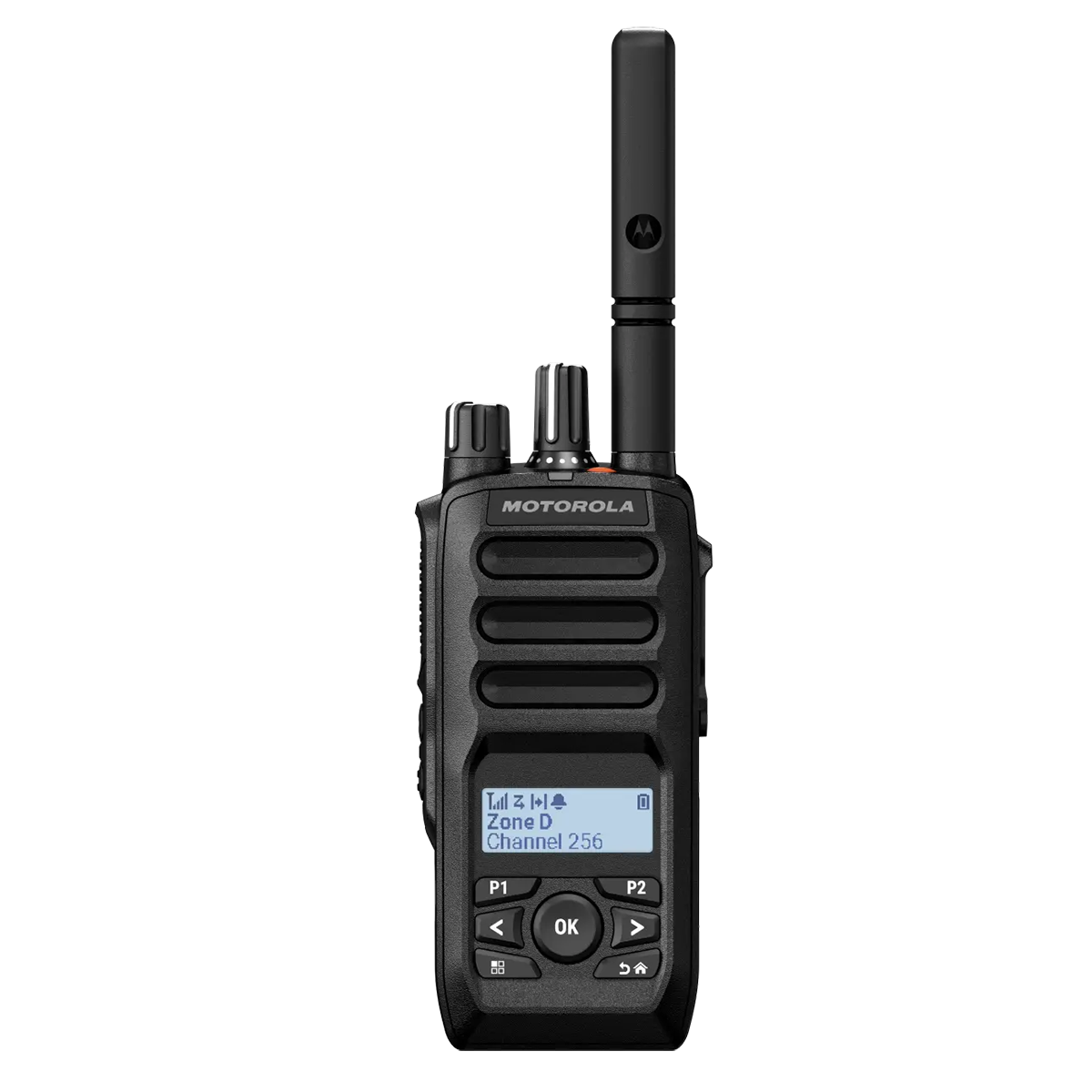

Motorola MOTOTRBO R5 Portable Two-Way Radio
A compact, tough MOTOTRBO portable with loud clear audio, optional display/GNSS/Wi-Fi/Bluetooth and up to 32 hours battery life.
General Specifications
| Frequency | VHF 136-174MHz, UHF 400-527MHz |
|---|---|
| High power output | VHF 5W, UHF 4W |
| Low power output | 1W |
| Channel spacing | 12.5kHz, 20kHz, 25kHz |
| Channel capacity | 256 LKP / 64 NKP |
| Zone capacity | 50 LKP / 4 NKP |
| Display | 132 x 48px 1.5in monochrome display on LKP |
| Battery life | Up to 32h digital / 24h analog with 3200mAh battery |
| Operating temperature | -20C to +60C |
Connectivity and Receiver
| GNSS | GPS, GLONASS, BeiDou, Galileo on LKP GNSS model |
|---|---|
| Wi-Fi | 2.4GHz and 5GHz; WPA3/WPA2 |
| Bluetooth | Bluetooth Classic, LE and Dual Mode; Core 5.2 |
| Analog sensitivity | 0.16uV |
| Digital sensitivity | 0.14uV |
| Spurious rejection | 70dB |
